X15 Spreader beam, Lifting capacity up to 15 Ton.
Revolutionary spreader beam with interchangeable arms. It's the ultimate in convenience and performance.
Crafted with a steel center, it's built to last. This beam is also available as a straight beam.
It's perfect for use in a range of industries and applications. This beam can be set up and ready to use in just few seconds, making it ideal for fast-paced work environments.
You'll be amazed at how quickly and efficiently you can handle even the heaviest loads.
 |
Type |  |
| Max load | 15 | |
| Material | Aluminum | |
| Weight | 95 | |

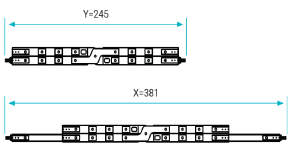

| Length Y (cm) | 245 | |
| Lenght X (cm) | 381 |

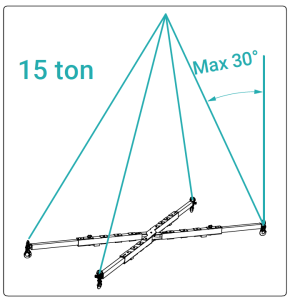

For larger lifting angles the maximum load needs to be limited as follows:
45° = 10.0 ton. max
60° = 5,8 ton. max
| OPTION 1 | OPTION 2 | OPTION 3 |
| . nr. 8 shackles | . nr. 4 shackles . nr. 4 connector links . nr. 4 hooks |
. nr. 8 shackles . nr. 4 connector links . nr. 4 hooks |
|
 |
 |
