X5 Spreader beam, Lifting capacity up to 5 Ton.
Highly versatile spreader beam capable of carrying loads up to 5 tons.
With a super lighweight design of only 35 kg, this beam can be set up and ready to use in just few seconds, making it ideal for fast-paced work environments.
Handmade in aluminum, the x5 is a durable and reliable solution for all your lifting needs.
 |
Type |  |
| Max load | 5 Ton. | |
| Material | Aluminum | |
| Weight | 35 Kg |

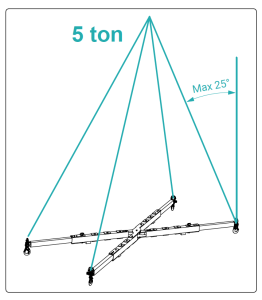

For larger lifting angles the maximum load needs to be limited as follows:
30° = 4.1 ton. max
35° = 3.4 ton. max
40° = 2.8 ton. max
45° = 2.4 ton. max
| OPTION 1 | OPTION 2 | OPTION 3 |
| . nr. 8 shackles | . nr. 4 shackles . nr. 4 connector links . nr. 4 hooks |
. nr. 8 shackles . nr. 4 connector links . nr. 4 hooks |
|
 |
 |
