Fixed Stabilizer version CR.
Delivery time: 4/5 weeks.

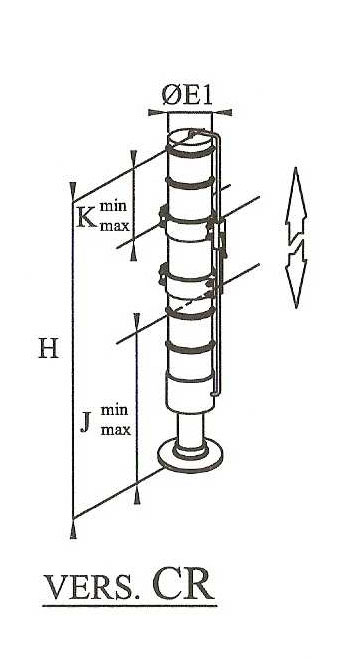

Fixed Stabilizer 0-TD-F/S-CR, Version CR : adjustable in height
Fixed additional stabilizers available for cranes with capacities from 4 to 10 ton./m.
Made with high quality tubular, adaptable to the dimensional requirements of the customer.
Equipped with idraulic double acting cylinders, adjustable in height with simple operations and equipped with safety shut-off valves.
| Crane ton-m |
DIMENSIONS mm |
ACCESSORIES | CR VERSION | |||||||||||
| IE | IC | AxB | CV | ØP | ØE1 | ØS | H | PS | CGR | J min-max mm |
K min-max mm |
Peso Kg |
||
| 10-23 | 2160 | 2000 | 120x80 | 355 | 160 | 75 | 40 | 530 |
• |
• |
120-420 | 0-330 | 80 | |
• optional
