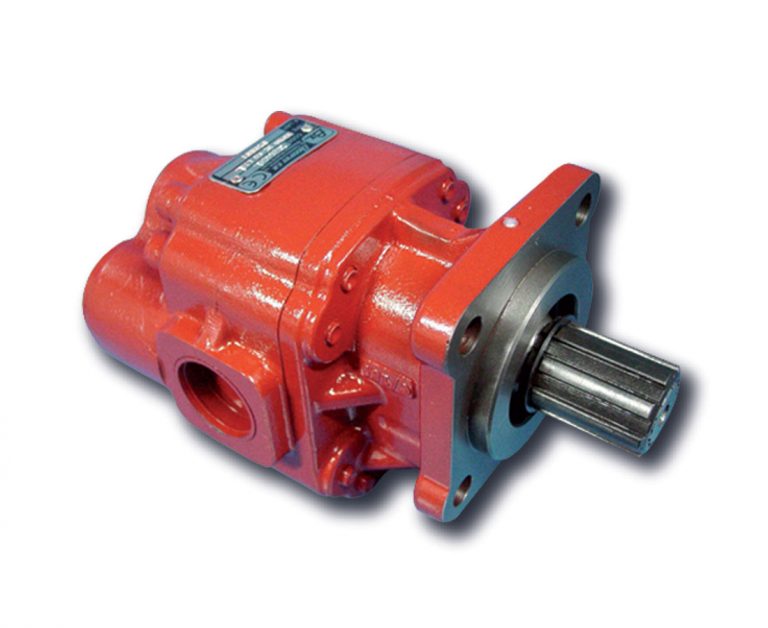

Gear pump with reversible sens of rotation, high pressure.
Delivery time: 1/2 weeks.
Gear pump high pressure with side and rear ports wich gives ample mounting bi-directional, available for ISO 4 bolts and SAE 2/4 bolts.
Working pressures up to 290 bar continuous.
| Technical Data | BE L 50 |
|
Displacement (cm3/rev) |
50 |
|
Maximum continuous pressure (P1) (bar) |
290 |
| Maximum peak pressure (P3) (bar) | 320 |
|
Speed (rpm)
.minimum (P1) .maximum (P1) |
|
| Weight (kg) | 12.6 |
| Sens of rotation |
Reversible/Bi-directional |
| Input pressure (recommended) |
0.7÷3 bar (abs) |
| Temperatures | -25°C /+80°c |
| Oil recommended | IDO / DIN , fire resistant fluids |
| Viscosity: .Recommended .Allowed |
.12 ÷ 100 mm2/s (cST) .max. 750 mm2/s (Cst) |
|
Dimensions |
A (±2) |
B (±2) |
C (±1) |
D (±1) |
E (±0.2) |
F (±0.2) |
| 168 | 96 | 83.6 | 21.6 | 78 | 135 |
